MAPEI HEATED FLOOR SYSTEMS

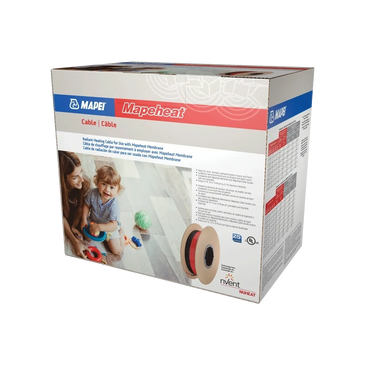

 Radiant-Heating Cable for Use with Mapeheat Membrane

Mapeheat Cable is a free-form, twisted-pair, floor-heating cable for use in any residential interior room where the comfort of radiant floor heating is desired. The cable can be spaced on site to provide 10, 12 or 15 W per sq. ft. based on the desired wattage output requirements of the installation. Mapeheat Cable is available in 33 lengths to accommodate areas as small as 6 sq. ft. (0.56 m²) and up to 293 sq. ft. (27.2 m²).

• Heats many types of flooring, such as tile, stone, luxury vinyl tile (LVT) and engineered wood
• Available in 120 V and 240 V
• Zero EMF (electromagnetic field) cable design
• Visible mid-point marker on heating cable
• Ultra-thin cold-lead splice fits easily into Mapeheat Membrane
• Suitable for use in wet environments, such as showers and steam rooms

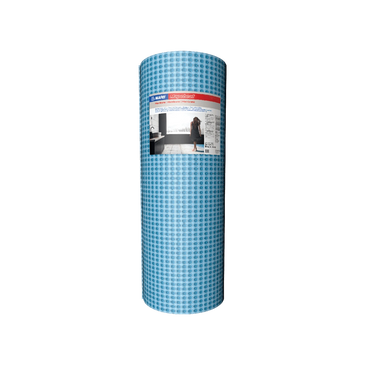

 Lightweight Uncoupling, Crack-Isolation and Waterproofing Membrane for Electrical Floor Heating

Mapeheat Membrane is a lightweight uncoupling, crack-isolation and waterproofing membrane that also provides vapor management and load support. This patented membrane is designed to speed the installation of tile and stone in interior rooms such as bathrooms, kitchens and three-season rooms where the luxury of radiant floor heating is desired. Mapeheat Membrane’s thin profile works well with remodeling projects where the new floor will be installed directly over a preexisting one. Once the heating cable is set within Mapeheat Membrane’s rounded square reliefs, a tile mortar can be applied immediately.

• Recommended for use with polymer-modified mortars
• Membrane thickness is less than 1/4" (6 mm)
• Replaces plywood or cement board as tile underlayment
• Works with all these floor types: ceramic tile, porcelain tile, granite, marble, natural stone, laminate/engineered wood floors, luxury vinyl tile (LVT) and luxury vinyl plank (LVP)
• Heating cable lays flat and secure
• UL-certified for wet environments, such as shower floors
• Suitable for areas with up to 25 lbs. (11.3 kg) MVER and 100% relative humidity
• Does not support mold growth

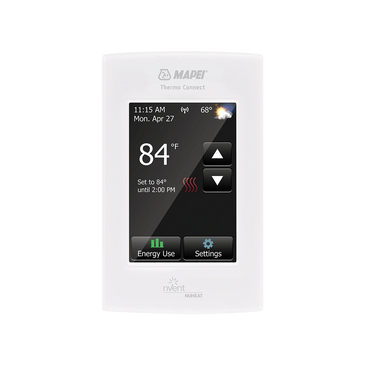

Programmable, WiFi Floor-Heating Thermostat

• Mapeheat Thermo Connect WiFi-enabled, floor-sensing thermostat has been designed specifically for today’s smart home.

Programmable Floor-Heating Thermostat

• Mapeheat Thermo Touch thermostat is a 7-day programmable, electric floor-heating thermostat that features a 3.5" (9 cm) color touchscreen display for accessing the super-intuitive user interface and energy use monitor.

Non-Programmable Floor-Heating Thermostat

• Mapeheat Thermo Basic thermostat is a non-programmable control that offers simple on/off capability for the Mapeheat floor-heating system.
